UL Approved LED Corn Light Street Corn Light 220V LED Corn Lamp
► Benefits
* Dual heat dissipation design of the lamp body. Isolated aluminum heat sink and driver, hollow heat sink increase airflow.
* Increase LED plates to 10/12pcs. No lighting shadow, more luminance uniformity.
* Combined heat sink reserve gaps for more ventilation area.
* Suitable to totally enclosed fixture.
* Passed 6000V high voltage surge test, protect the lamp better.
* Good brightness LED with 130lm/w, LM80 certificated.
* More 15% LED compared with general corn bulb in market.
* Fanless design with 5 years warranty.
* The circle ring on the lamp can be customized the color as request.
* UL/cUL/DLC/CE/ROHS/FCC/LM80 certification.
* IES files available.
► Specification:
|

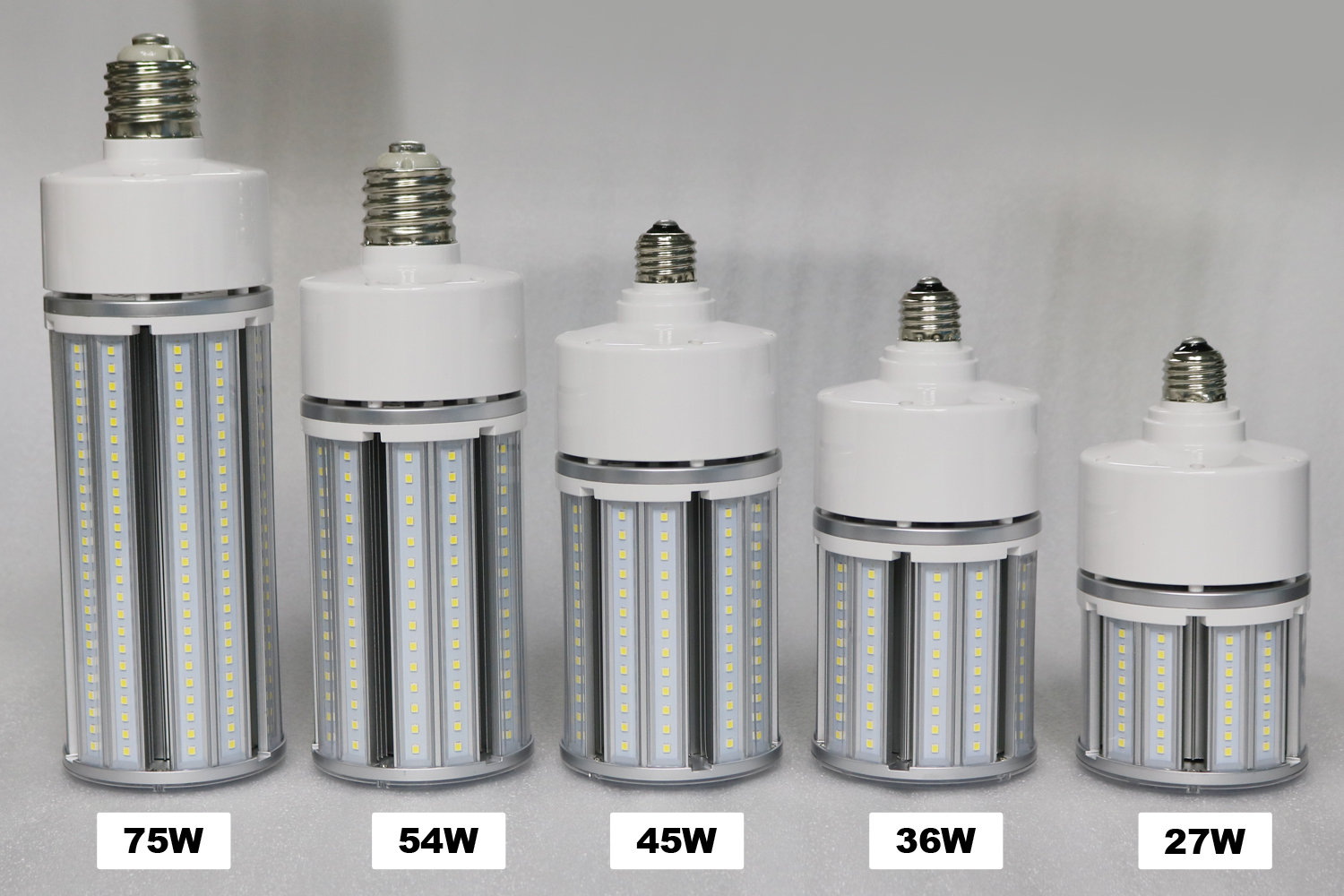

Φ 95mm Series LED Corn Light LED Replacement Kit
|
|
Wattage
|
27W
|
36W
|
45W
|
54W
|
75W
|
|
Model Number
|
RMS-K15-27W
|
RMS-K15-36W
|
RMS-K15-45W
|
RMS-K15-54W
|
RMS-K15-75W
|
|
Input Voltage
|
100-300VAC 50-60Hz
|
|
LED Source
|
Samsung SMD5630/ Epistar SMD5730
|
|
Luminous Flux
|
3510lm±100lm
|
4680lm±100lm
|
5850lm±100lm
|
7020lm±100lm
|
9750lm±100lm
|
|
LED Qty
|
108pcs
|
130pcs
|
165pcs
|
200pcs
|
290pcs
|
|
CCT
|
3000K/4000K/5000K/6000K
|
|
CRI
|
>80
|
|
Power Factor
|
>0.9
|
|
Beam angle
|
360°
|
|
IP Rated
|
IP64
|
|
Lifetime
|
50,000 hours
|
|
Working
Temperature
|
-30℃ ~55℃
|
|
Dimension
|
Φ95* 190mm
|
Φ95* 215mm
|
Φ95* 240mm
|
Φ95* 265mm
|
Φ95* 310mm
|
|
Base
|
E27 / E26 (Medium)E40 / E39 (mogul))
|
|
Driver
|
Internal UL listed LED Driver
|
|
Warranty
|
5 Years
|
|
Certification
|
UL, DLC, CE, LVD, EMC, RoHS, FCC
|
|
Test Report
|
IES Files, LM80/LM79 Test Report
|
► Application
1. Indoor lighting: warehouse, factory, work shop, exhibition hall and other commercial lighting , drop light ,workshop ,canopy lighting ,high bay/low bay,garage
2. Outdoor Lighting: parking areas, garden, street lighting ,driveway/pathway/cobra ,parking lots , flood light/tunnel light ,square light ,yard ,wallpack,post top
3. Energy saving high power LED light to replace conventional incandescent, HID & CFL bulbs directly, E40/E39/E27/26 lamp also are suitable.
